Specifications

• Dimensions

  add remove
  • Length:
    103.0 in
  • Seat height, unladen:
    28.0 in
  • Rake (steering head):
    26
  • Wheelbase:
    67.7 in
  • Tires, front specifications:
    MT 130/60B19 M/C 61H
  • Tires, rear specifications:
    P215/45R18 83T
  • Oil capacity:
    5 qt.
  • Weight, as shipped:
    1,146 lbs
  • Weight, in running order:
    1184 lb
  • Luggage capacity – volume:
    2 cu ft (0.06 m3)
• Engine

  add remove
  • Engine:
    Milwaukee-Eight® VVT 117
  • Bore:
    4.1 in
  • Stroke:
    4.5 in
  • Displacement:
    117.35 in³
  • Compression ratio:
    10.3:1
  • Fuel system:
    Electronic Sequential Port Fuel Injection (ESPFI)
  • Exhaust:
    2-1-2 dual exhaust
• Performance

  add remove
  • Engine torque testing method:
    J1349
  • Engine torque:
    129.1 ft-lb
  • Engine torque (RPM):
    3250
  • Horsepower:
    105 HP / 78 kW @ 4600 rpm
  • Fuel economy testing method:
    Estimated City/Hwy
  • Fuel economy:
    39 mpg (6 l/100 km)
• Powertrain

  add remove
  • Primary drive:
    Belt, 30/70 ratio
  • Gear ratios (overall) 1st:
    10.534
  • Gear ratios (overall) 2nd:
    7.302
  • Gear ratios (overall) 3rd:
    5.423
  • Gear ratios (overall) 4th:
    4.392
  • Gear ratios (overall) 5th:
    3.742
  • Gear Ratios (overall) 6th:
    3
• Chassis

  add remove
  • Front fork:
    1.9 in dual bending valve
  • Rear shocks:
    Hand-adjustable emulsion rear suspension
  • Wheels, front type:
    Gloss Black/Machined 5-spoke, Cast Aluminum
  • Wheels, rear type:
    Gloss Black/Machined 5-spoke, Cast Aluminum
  • Brakes, type:
    Dual floating rotors (front), fixed rotor (rear)
  • Brakes, caliper type:
    Front: 1.3 in 4-piston fixed, Rear: floating 1.4 in piston integrated park brake
• Infotainment

  add remove

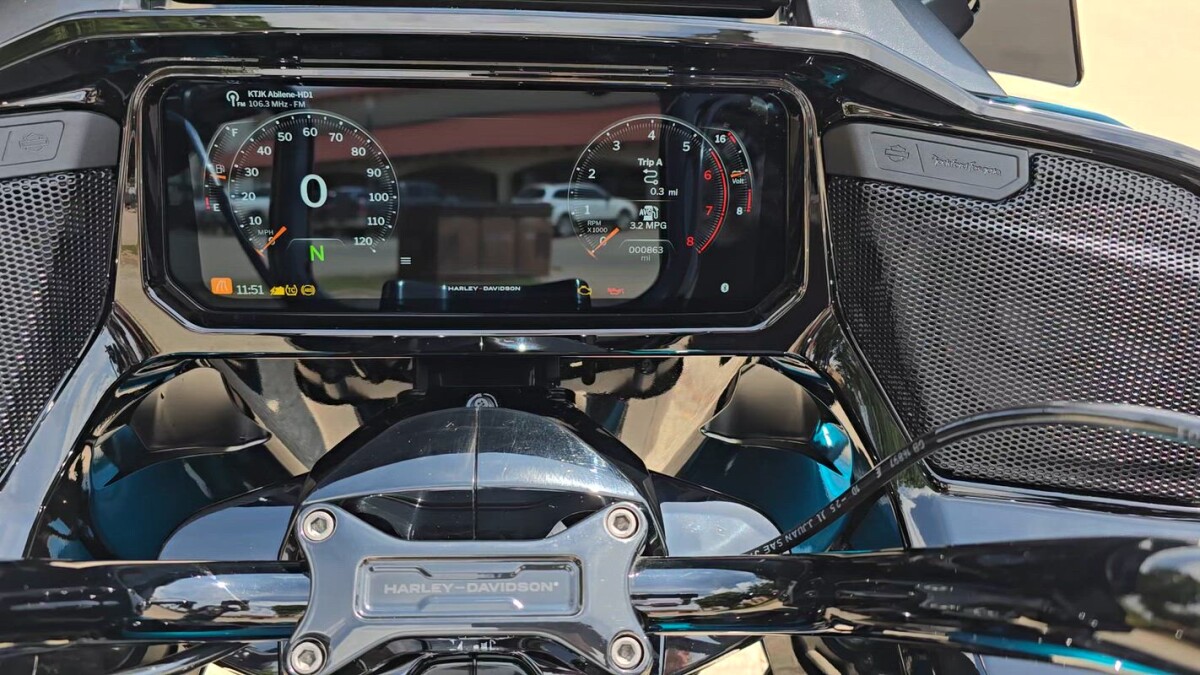

  • Infotainment system:
    Skyline™ OS
  • Type:
    Full Color TFT
  • Watts per channel:
    50
  • Speakers:
    2
  • Speaker size:
    5.25 inch
  • AM:
    Standard
  • FM:
    Standard
  • SD Card, Flash Drive and MP3 — via USB Connection:
    Supported
  • Languages:
    Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese
  • Hands-free mobile phone — via Bluetooth:
    Standard
  • Voice Recognition Languages: Phone functions only:
    Phone dependent
  • Voice Recognition Languages: Tuner / Media / Navigation:
    Danish, English (UK/USA default), French (Canada/France), German, Italian, Spanish (Mexico/Spain) & Swedish
  • Text-to-Speech (TTS) languages:
    Same as Languages list
  • Vehicle information screen:
    Standard
  • USB:
    USB-C/MTP/Smartphone will work with any phone which has proper adapters to the connection located in the inner fairing storage
  • Bluetooth:
    Phone/Media Player, Headset
