Specifications

• Dimensions

  add remove
  • Length:
    89.4 in
  • Overall width:
    33.1 in
  • Overall height:
    42.7 in
  • Seat height, unladen:
    30.1 in
  • Ground clearance:
    3.5 in
  • Rake (steering head):
    30
  • Trail:
    5.8 in
  • Wheelbase:
    59.8 in
  • Tires, front specifications:
    160/70R17 73V
  • Tires, rear specifications:
    180/70R16 77V
  • Fuel Capacity:
    3.1 gal
  • Oil capacity:
    4.75 qt.
  • Weight, as shipped:
    487 lbs
  • Weight, in running order:
    502 lb
  • Tire, type:
    Dunlop® Harley-Davidson Series, radial
  • Fork angle:
    28
  • Reserve fuel capacity, fuel injection:
    0.8 gal
  • Gross axle weight rating, front:
    359 lbs
  • Gross axle weight rating, rear:
    595 lbs
• Engine

  add remove
  • Engine:
    Revolution® Max 1250T
  • Bore:
    4.1 in
  • Stroke:
    2.8 in
  • Displacement:
    76.40 in³
  • Compression ratio:
    12.0:1
  • Fuel system:
    Electronic Sequential Port Fuel Injection (ESPFI)
  • Exhaust:
    2-into-1-into-2; catalyst in muffler
• Performance

  add remove
  • Engine torque testing method:
    J1349
  • Engine torque:
    92.9 ft-lb
  • Engine torque (RPM):
    6000
  • Horsepower:
    121 HP / 90 kW @ 7500 rpm
  • Lean angle, right (deg.):
    35
  • Lean angle, left (deg.):
    35
  • Fuel economy testing method:
    Estimated City/Hwy
  • Fuel economy:
    49 mpg (5.1 l/100km)
• Powertrain

  add remove
  • Primary drive:
    Gear, 49/89 ratio
  • Gear ratios (overall) 1st:
    12.21
  • Gear ratios (overall) 2nd:
    9.022
  • Gear ratios (overall) 3rd:
    6.994
  • Gear ratios (overall) 4th:
    5.641
  • Gear ratios (overall) 5th:
    4.731
  • Gear Ratios (overall) 6th:
    4.131
• Chassis

  add remove
  • Front fork:
    43 mm inverted fork with compression, rebound and spring preload adjustability. Aluminum fork triple clamps
  • Rear shocks:
    Linkage-mounted, piggyback monoshock with compression, rebound and hydraulic spring preload adjustability
  • Wheels, front type:
    Aluminum cast, satin black
  • Wheels, rear type:
    Aluminum cast, satin black
  • Brakes, type:
    Front: single rotor, floating, tower- mounted Rear: solid uniform expansion rotor
  • Brakes, caliper type:
    Front: radially mounted, monoblock, 4-piston caliper Rear: floating, single piston caliper
• Infotainment

  add remove

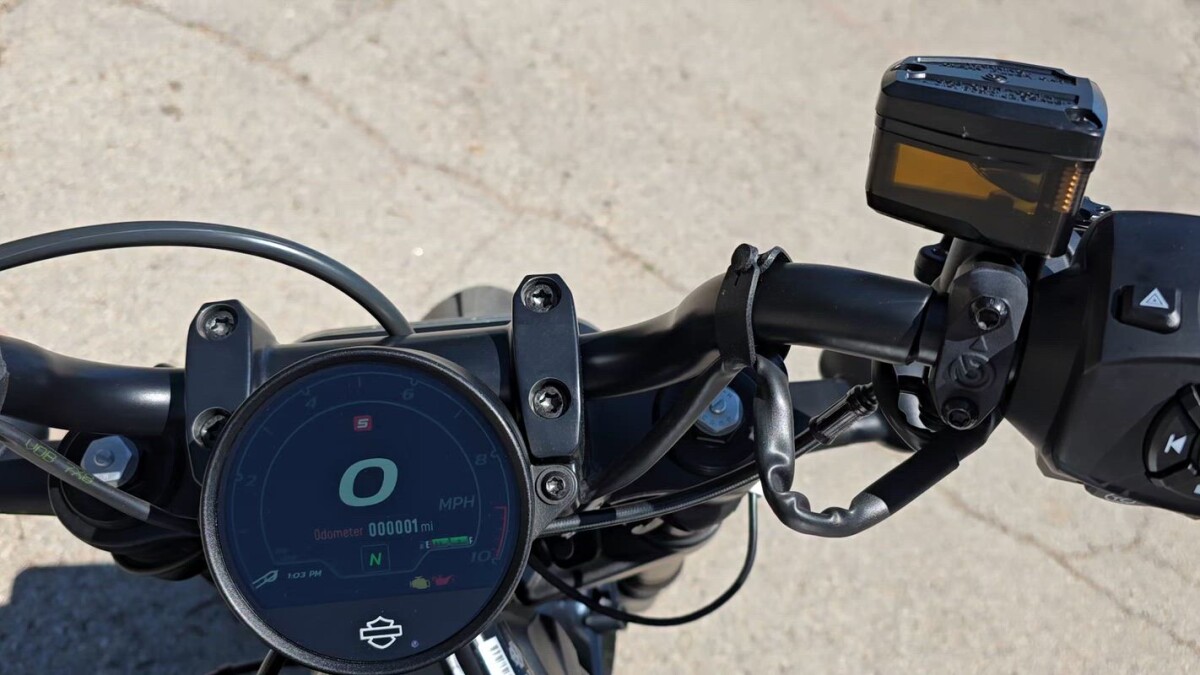

  • Screen size:
    4 in
  • Type:
    Color TFT
  • Headset specifications (if equipped):
    Bluetooth
  • Languages:
    Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish
  • Hands-free mobile phone — via Bluetooth:
    Standard
  • Voice Recognition Languages: Phone functions only:
    Phone dependent
  • Voice Recognition Languages: Tuner / Media / Navigation:
    Phone dependent
  • Text-to-Speech (TTS) languages:
    Phone dependent
  • Rider / passenger intercom:
    Headset function only
  • Vehicle information screen:
    TPMS, Engine temp, Battery Voltage, Ambient Air Temp
  • USB:
    Charging and Instrument update, USB-C, 5V, 3A
  • Bluetooth:
    Phone/Media Supported
