Specifications

• Dimensions

  add remove
  • Length:
    89.2 in
  • Seat height, unladen:
    28.1 in
  • Rake (steering head):
    30
  • Trail:
    5.4 in
  • Wheelbase:
    60.8 in
  • Tires, front specifications:
    100/90-19 57H
  • Tires, rear specifications:
    150/80B16 77H
  • Fuel Capacity:
    3.1 gal
  • Oil capacity:
    4.75 qt.
  • Weight, as shipped:
    465 lbs
  • Weight, in running order:
    483 lb
  • Tire, type:
    Dunlop® Harley-Davidson Series Bias Blackwall
• Engine

  add remove
  • Engine:
    Revolution® Max 975T
  • Bore:
    3.8 in
  • Stroke:
    2.6 in
  • Displacement:
    59.50 in³
  • Compression ratio:
    12:01
  • Fuel system:
    Electronic Sequential Port Fuel Injection (ESPFI)
  • Exhaust:
    2-into-1; catalyst in header
• Performance

  add remove
  • Engine torque testing method:
    J1349
  • Engine torque:
    71.5 ft-lb
  • Engine torque (RPM):
    5750
  • Horsepower:
    91 HP / 68 kW @ 7500 rpm
  • Lean angle, right (deg.):
    32
  • Lean angle, left (deg.):
    32
  • Fuel economy testing method:
    Estimated City/Hwy
  • Fuel economy:
    52 mpg (4.5 l/100 km)
• Powertrain

  add remove
  • Primary drive:
    Gear, 49/89 ratio
  • Gear ratios (overall) 1st:
    12.21
  • Gear ratios (overall) 2nd:
    9.022
  • Gear ratios (overall) 3rd:
    6.994
  • Gear ratios (overall) 4th:
    5.641
  • Gear ratios (overall) 5th:
    4.731
  • Gear Ratios (overall) 6th:
    4.131
• Chassis

  add remove
  • Front fork:
    41mm SHOWA® Dual Bending Valve conventional forks. Aluminum fork triple clamps
  • Rear shocks:
    Rear suspension is dual outboard, direct-acting (no linkage) emulsion technology shock absorbers with coil springs and a threaded collar for pre-load adjustment
  • Wheels, front type:
    Aluminum cast, silver
  • Wheels, rear type:
    Aluminum cast, silver
  • Brakes, type:
    Front: single rotor, floating, hub - mounted; Rear: solid uniform expansion rotor
  • Brakes, caliper type:
    Front: axially mounted, 4-piston caliper; Rear: floating, single piston caliper
• Infotainment

  add remove

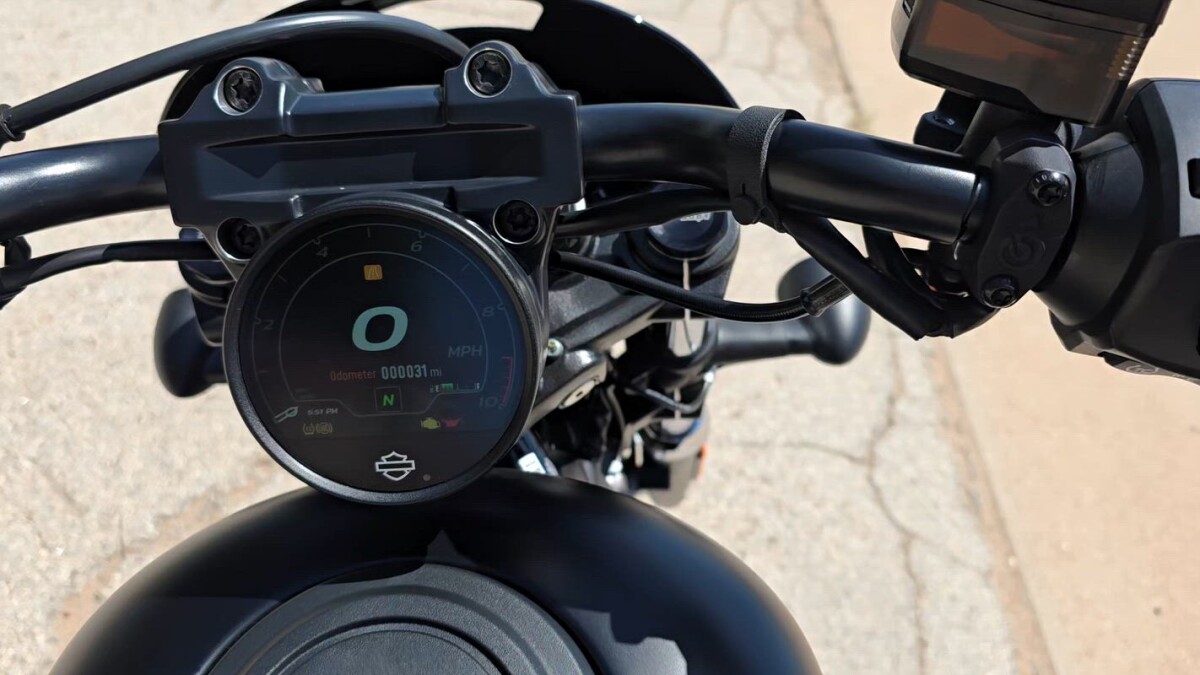

  • Screen size:
    4 in
  • Type:
    Color TFT
  • Headset specifications (if equipped):
    Bluetooth
  • Languages:
    Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish
  • Hands-free mobile phone — via Bluetooth:
    Standard
  • Voice Recognition Languages: Phone functions only:
    Phone dependent
  • Voice Recognition Languages: Tuner / Media / Navigation:
    Phone dependent
  • Text-to-Speech (TTS) languages:
    Phone dependent
  • Rider / passenger intercom:
    Headset function only
  • Vehicle information screen:
    TPMS, Engine temp, Battery Voltage, Ambient Air Temp
  • USB:
    Charging and Instrument update, USB-C, 5V, 3A
  • Bluetooth:
    Phone/Media Supported
